Piston Ring Kit (70mm) *Single Piston* - Classic Fiat Panda,Uno Lancia Y10
Piston Ring Kit (70mm) *Single Piston* - Classic Fiat Panda,Uno Lancia Y10
OE Quality Branded Parts

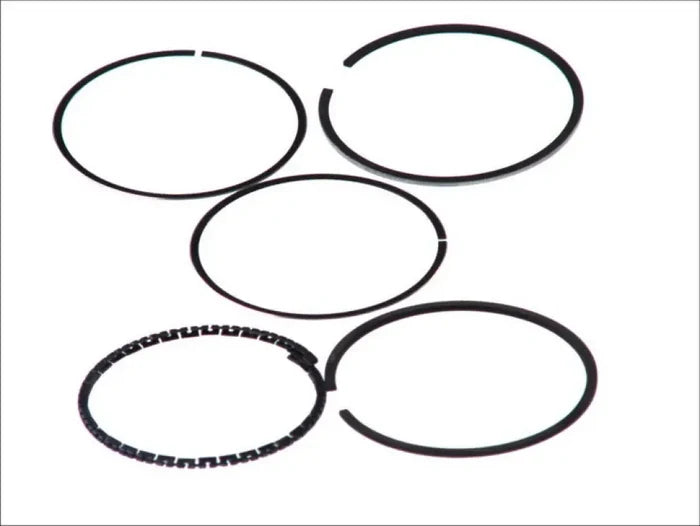

This is a set of Piston Rings for ONE Piston
A quantity of four sets required for a full engine overhaul
STANDARD SIZE 70mm
Oil Ring is 3.0mm (earlier pistons use a different ring set with a 2.5mm oil ring)
| Component No. |
1.1,50 2.1,50 3.3,00, 1.CR2.P3.CR |
|---|
to fit:
|
PANDA (141_) 1000
Engine Code: 156 A3.000 |
01.1985-12.1992 | 50 | 999 |
|---|---|---|---|
|
PANDA (141_) 1000
Engine Code: 156 A2.100 |
01.1986-04.1992 | 44 | 999 |
|
PANDA (141_) 1000 4x4
Engine Code: 156 A3.000 |
01.1986-12.1992 | 50 | 999 |
|
PANDA (141_) 1000 4x4
Engine Code: 156 A2.246 |
05.1986-12.1994 | 45 | 999 |
|
PANDA (141_) 1000 4x4
Engine Code: 156 A2.100 |
01.1986-07.1989 | 44 | 999 |
|
PANDA (141_) 1000 i.e. Cat
Engine Code: 156 A2.246 |
10.1987-08.1998 | 45 | 999 |
|
PANDA (141_) 1100
Engine Code: 156 C.046 Construction Year from: 03.1992 |
05.1991-12.1999 | 50 | 1108 |
|
PANDA (141_) 1100 Trekking 4x4
Engine Code: 156 C.046 |
10.1991-07.2004 | 50 | 1108 |
|
PANDA Hatchback Van (141_) 1000
Engine Code: 156 A2.100 |
01.1986-02.1992 | 44 | 999 |
|
PANDA Hatchback Van (141_) 1000 i.e
Engine Code: 156 A2.246 |
08.1992-02.2004 | 45 | 999 |
|
TIPO (160_) 1.1 (160.AA)
Engine Code: 160 A3.000 |
01.1988-10.1991 | 56 | 1108 |
|
UNO (146_, 158_) 1.0 iE
Engine Code: 156 A2.246 |
05.1998-08.2000 | 46 | 999 |
|
UNO (146_, 158_) 1.1
Engine Code: 160 A3.000 |
10.1988-06.2006 | 58 | 1108 |
|
UNO (146_, 158_) 1.1
Engine Code: 160 A3.000 Construction Year from: 01.1988 |
04.1986-06.2006 | 56 | 1108 |
|
UNO (146_, 158_) 45 1.0 (146A.ED)
Engine Code: 156 A2.100 |
06.1986-12.1993 | 44 | 999 |
|
UNO (146_, 158_) 45 i.e. 1.0 (146E, 146A)
Engine Code: 156 A2.246 |
10.1984-10.1995 | 45 | 999 |
|
UNO (146_, 158_) 45 i.e. 1.0 (146E, 146A)
Engine Code: 156 A2.000 |
10.1984-10.1995 | 45 | 999 |
|
UNO (146_, 158_) 50 1.1
Engine Code: 156 C.046 |
01.1990-12.1993 | 50 | 1108 |
|
UNO (146_, 158_) 60 1.1
Engine Code: 160 A3.000 |
04.1989-12.1992 | 57 | 1108 |
If you need any help please contact us with the registration or chassis number for help
5882324,7609961,7617136,7617128,9790007200
